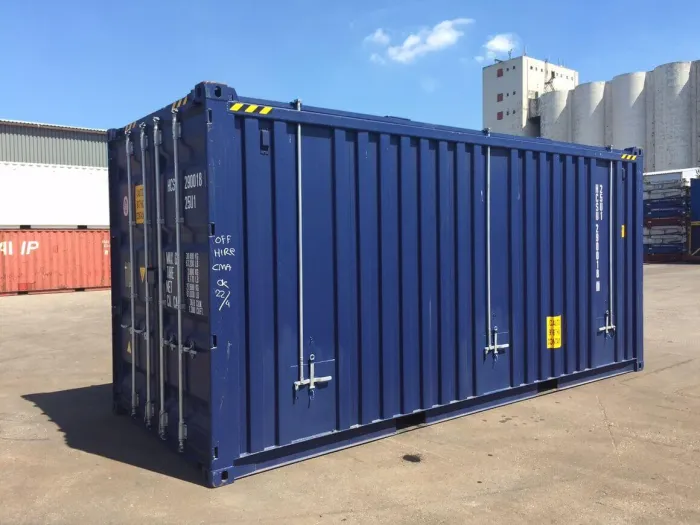

20FT High Cube Hard Open Top Container
Engineered Access. Built for Oversize & Delicate Cargo.
The 20FT High Cube Hard Open Top Container offers a heavy-duty solution for handling tall, irregularly shaped, or fragile cargo requiring top-down vertical loading. This container features a removable steel roof and a detachable door header bar, allowing clear, unobstructed access to the full cargo bay for overhead crane operations or large-format forklift movement.
Constructed from CORTEN anti-corrosive steel and fully compliant with ISO dimensions and CSC certification, this unit is suitable for international intermodal transport, custom on-site deployment, or modular design projects. Built for stackability and long-term use, it balances accessibility with structural integrity.
Key Features
-
Roof Configuration: Hard steel open-top with full removal capability
-
Access: Detachable top and door header for vertical or oversized loading
-
Structure: Full CORTEN steel body with reinforced corner castings
-
Compliance: ISO dimensions and CSC-certified for global shipping
-
Flooring: Choice of wooden or steel flooring (28mm thickness)
-
Ventilation & Handling: Integrated air vents, lockbox, and forklift pockets
-
Finish: RAL5013 blue; custom RAL finishes available upon request
Technical Specifications
| Specification | Details |
|---|---|
| External Dimensions | 6.058 × 2.438 × 2.896 m (L × W × H) |
| Internal Dimensions | 5.898 × 2.332 × 2.678 m (L × W × H) |
| Roof Opening | 5.570 × 2.210 m |
| Door Opening (W × H) | 2.338 × 2.567 m |
| Internal Volume | 36.80 m³ |
| Tare Weight | 2,800 kg |
| Max Payload | 27,680 kg |
| Max Gross Weight | 30,480 kg |
| Floor Thickness | 28 mm (steel or wood option) |
Structural and Handling Notes
-
Roof panels are engineered for easy detachment and reinstallation using standard container lifting equipment.
-
Door header bar is removable to enable forklift loading of tall objects without interference.
-
Corner castings support stacking and lifting via standard twist-lock crane attachments.
-
Floor system resists deformation under high-impact load, with optional surface configurations (wooden or steel plating).
-
Forklift pockets ensure repositioning in yards or on-site without heavy lifting cranes.
Best Use Cases
Oversized Machinery Transport
Allows vertical crane loading of heavy machinery, frames, or uncrated industrial equipment with precision alignment.
Top-Fill Bulk Commodities
Ideal for gravel, scrap, or raw material loading via chute or loader, especially in non-containerized handling zones.
Fragile Equipment Storage
Protects sensitive goods during staged storage while enabling non-invasive top-down removal for delicate items.
Modular Construction or Pods
Supports custom-built structures requiring high cube ceilings and overhead accessibility (manufacturing shells, HVAC pods, etc.).
On-Site Ventilated Storage
Acts as a semi-permanent warehouse solution for materials requiring passive airflow and partial weather shielding.
